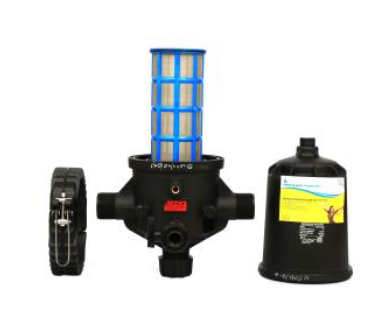

Screen/Mesh Filter(PIAL)10-40m3/hr
High Quality Screen Filter
₹2400.00
PIAL's Mesh/Screen Filters come with a ribbed polymer cartridge with a stainless steel mesh and a body made of glass filled polypropythene.
Tube well water source
Bore well water source
Ribbed polymer cartridge with stainless steel mesh
Body made of glass filled polypropythene
Tapping for pressure drop reading
Model AMFMkll | Rated capacity m3/hr | Inlet /Outlet dia | Cartridge - Dimensions mm | Mesh size | Clean flow head loss at rated capacity m |
|---|---|---|---|---|---|
10 – 40mm | 10 | 1½” | 110 dia x 190 | 150 | 0.6 |
10 – 50 mm | 10 | 2” | 110 dia x 190 | 150 | 0.6 |
20 – 50mm | 20 | 2” | 110 dia x 340 | 150 | 0.7 |
30 – 65mm | 30 | 2½” | 110 dia x 490 | 150 | 0.7 |
40 – 75mm | 40 | 3” | 110 dia x 640 | 150 | 0.7 |
